Robotic Pick Conveyor

Overview

The Industrial Kinetics Robotic Bag Pick Conveyor is engineered to accurately stage filled bags for robotic palletizing. Positioned directly upstream of the robotic cell, it provides precise, repeatable bag placement within the robot’s pick zone. The system uses photoelectric sensors and motorized controls to synchronize bag delivery with the robot’s programmed cycle, ensuring smooth, continuous operation. Built to the same industrial standards as all IK conveying equipment, this unit provides dependable performance for high-volume packaging lines.

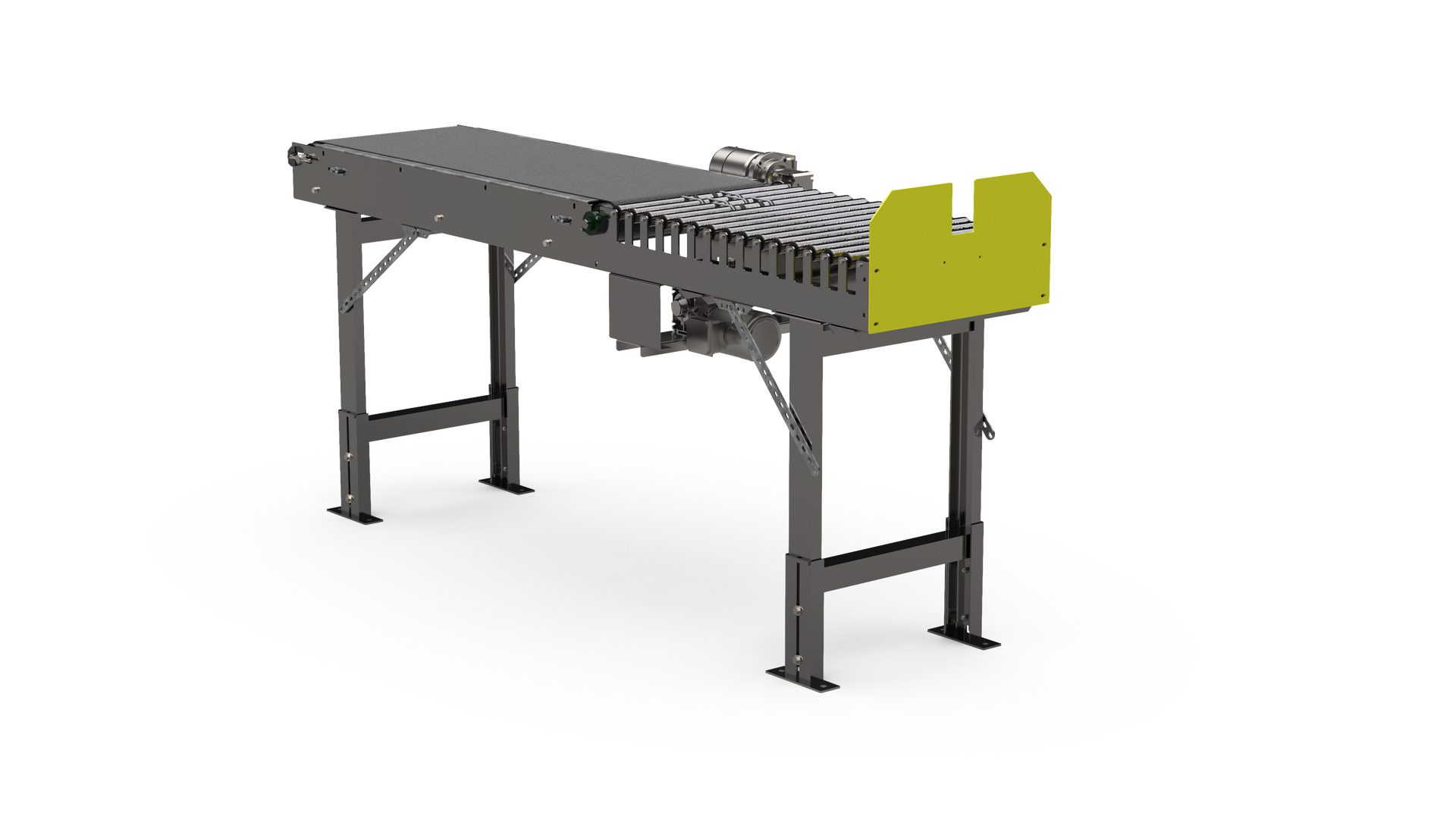

Conveyor belt system with black frame, gray belt, and yellow safety guard.

Technical Details

Controls

Load Capacities

Options

Non-Standard Features

Why Choose Us

The Industrial Kinetics Robotic Bag Pick Conveyor is designed from the ground up for robotic palletizing accuracy and dependability. Each conveyor is manufactured to CEMA and Industrial Kinetics standards, featuring durable 10-gauge steel construction and precision components. The adjustable height and variable speed drive allow easy adaptation to any robotic cell configuration. With options for advanced controls, vision integration, and indexing, this conveyor provides the precision necessary for high-speed, fully automated palletizing operations.

System Integration

This conveyor is purpose-built for integration into robotic palletizing systems. Integrated photoeyes control bag accumulation and release into the robot’s pick window, ensuring reliable sequencing. Optional servo or VFD indexing allows for perfect synchronization with multi-axis robot movements, reducing idle time and improving overall line efficiency.

What industries typically use these systems:

01

Feed & Seed Packaging – Positions filled bags for robotic palletizing of bulk products.


02

Food & Ingredients – Transfers and aligns bags of flour, sugar, or powdered materials for pick placement.

03

Chemical & Mineral Processing – Prepares heavy-duty product bags for robotic lift and stack operations.

04

Building Materials – Handles cement, lime, and mortar bags for automated palletizing.

success stories

Manual Palletizing and Pallet Handling Conveyor System in Distribution Center

March 3, 2026
High speed manual palletizing system featuring a low profile dual deck Smart transfer car, automatic pallet dispenser, and zero pressure accumulation to reduce labor, improve ergonomics, lower maintenance costs, and streamline pallet handling operations.
Factory floor with a conveyor belt system and machinery, including a green cabinet, under bright lights.

Material Delivery and Dunnage Removal Conveyor system for Parallel Assembly Line, Overhead Material Delivery System

August 29, 2025
A vehicle manufacturer was looking for a new method to deliver materials for the assembly of vehicles to four parallel assembly lines. IK developed, engineered, and implemented an overhead pallet conveyor system that provided great benefits to the vehicle manufacturer.

Frequently Asked Questions

  • How does the robotic bag pick conveyor differ from a standard conveyor?

    It includes precise controls and sensors that synchronize with robotic pick cycles, ensuring accurate bag presentation to the robot. The frame is cut for clearance to end of arm tooling.

  • Can this conveyor work with any brand of robot?

    Yes. It interfaces with all major robot systems. Most end effectors have tines on 3” or 80m centers, we offer frames to accommodate either.

  • What is the maximum bag size or weight it can handle?

    It handles most industrial bag types up to 150 lb and 40 in in length, consistent with Industrial Kinetics’ heavy-duty specifications.

  • How is bag position controlled?

    Photoeyes, proximity sensors, and overdriving into a fixed end stop ensures that each bag is in the correct position before the robot picks it.

  • Is the conveyor adjustable for different robot configurations?

    Yes. The height, speed, and guide adjustments allow the conveyor to be tailored to various robotic end-of-arm tooling requirements.

  • Can the conveyor be used in non-robotic systems?

    Yes. While designed for robotic pick operations, it can also function as a precision infeed conveyor for semi-automated palletizing lines.

  • What maintenance does it require?

    Periodic belt inspection, photoeye cleaning, and lubrication of drive components. All key access points are easily reached for service.
