Padded Chain Driven Live Roller Conveyor

Overview

The PCZAC Padded Chain Driven Live Roller Conveyor is a zone‑accumulating, chain‑driven roller conveyor engineered for zero pressure accumulation and controlled transportation of palletized loads with a minimized drive count. The padded chain drive and discrete accumulation zones allow pallets to stop, queue, and release without contact, reducing product damage and system wear.

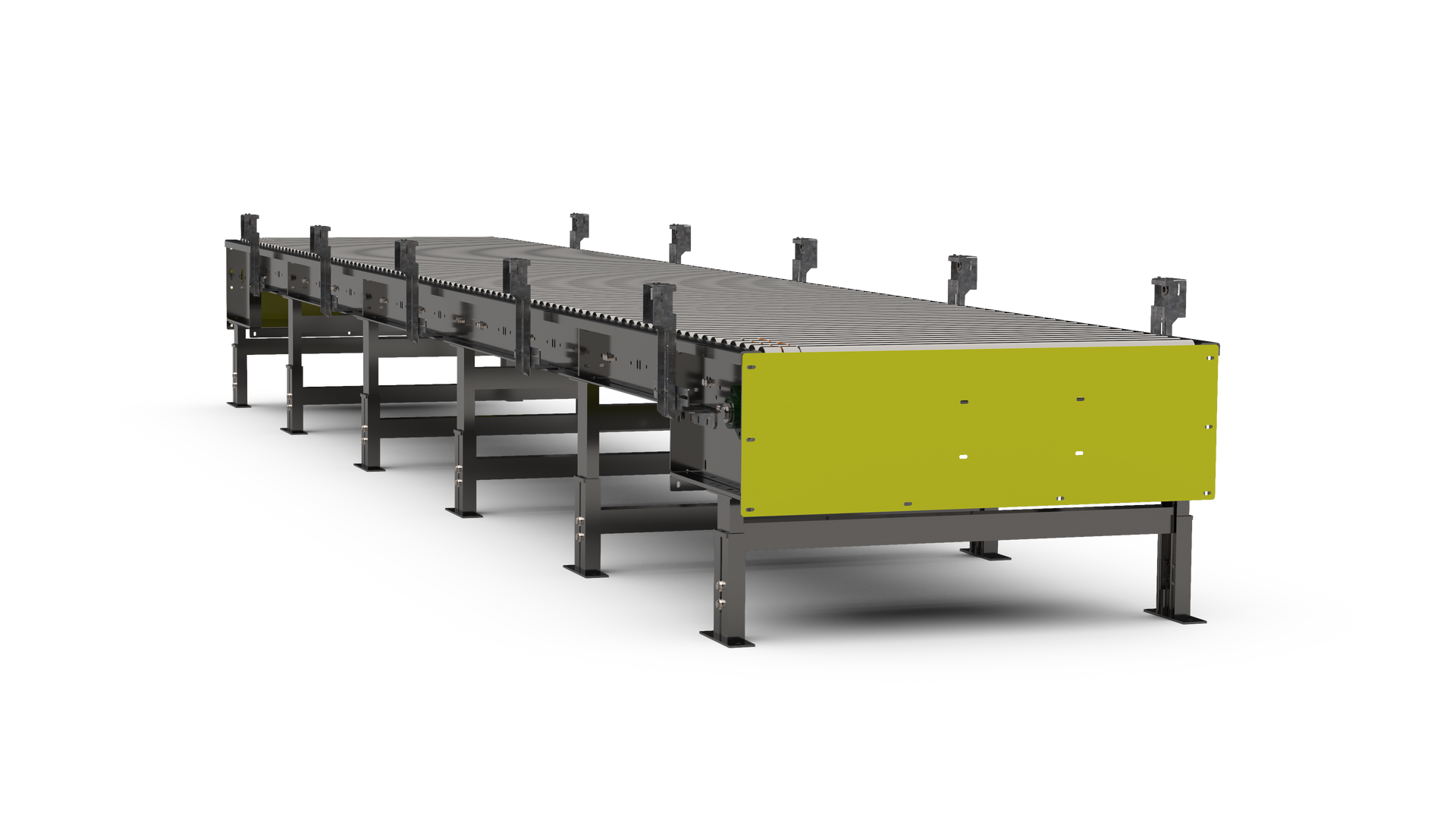

A long, gray industrial conveyor belt with yellow side panels.

Specifications

Controls

Load Capacities

Options

Non-Standard Features

Why Choose Us

Industrial Kinetics’ PCZAC conveyor reflects proven chain driven roller and accumulation design practices used across demanding pallet handling applications. Heavy 4‑gauge frames, robust 2060 chain drives, and engineered zone control components provide long service life, predictable performance, and straightforward maintenance. Each conveyor is engineered to order, ensuring proper application of CEMA design principles and reliable integration into automated systems.

success stories

Manual Palletizing and Pallet Handling Conveyor System in Distribution Center

March 3, 2026
High speed manual palletizing system featuring a low profile dual deck Smart transfer car, automatic pallet dispenser, and zero pressure accumulation to reduce labor, improve ergonomics, lower maintenance costs, and streamline pallet handling operations.
Factory floor with a conveyor belt system and machinery, including a green cabinet, under bright lights.

Material Delivery and Dunnage Removal Conveyor system for Parallel Assembly Line, Overhead Material Delivery System

August 29, 2025
A vehicle manufacturer was looking for a new method to deliver materials for the assembly of vehicles to four parallel assembly lines. IK developed, engineered, and implemented an overhead pallet conveyor system that provided great benefits to the vehicle manufacturer.

System Integration

The PCZAC conveyor integrates seamlessly with palletizing systems, transfers, turntables, and automated storage or retrieval systems. Zone‑based accumulation supports controlled release to downstream equipment while minimizing drive complexity. The conveyor can interface with higher‑level control systems, AGVs, or AMRs through standard electrical and pneumatic signals, consistent with Industrial Kinetics system design practices.

What industries typically use these systems:

01

Manufacturing: Controlled accumulation of palletized components between processes

02

Distribution & Warehousing: Zero pressure pallet queuing prior to palletizing, depalletizing, or shipping

03

Automotive & Heavy Industry: Handling of high‑weight pallet loads with minimal product contact

04

Packaging Lines: Buffering pallets upstream or downstream of automated palletizers

Frequently Asked Questions

  • What is zero pressure accumulation?

    Zero pressure accumulation allows pallets to stop in individual zones without contacting the pallet ahead, preventing product damage and reducing back‑pressure.

  • Why use a padded chain drive?

    The padded chain provides positive roller engagement while reducing noise and wear compared to conventional chain‑to‑sprocket designs.

  • How are zones controlled?

    Each zone uses a photoeye and air‑actuated mechanism with an integrated brake to start, stop, and release pallets independently.

  • Can the PCZAC handle different pallet sizes?

    Yes. Effective widths and zone configurations are selected based on pallet dimensions and load characteristics.

  • Is customization available?

    Industrial Kinetics routinely customizes accumulation conveyors to suit specific loads, layouts, and operating environments.
