Square Roller Conveyor

Overview

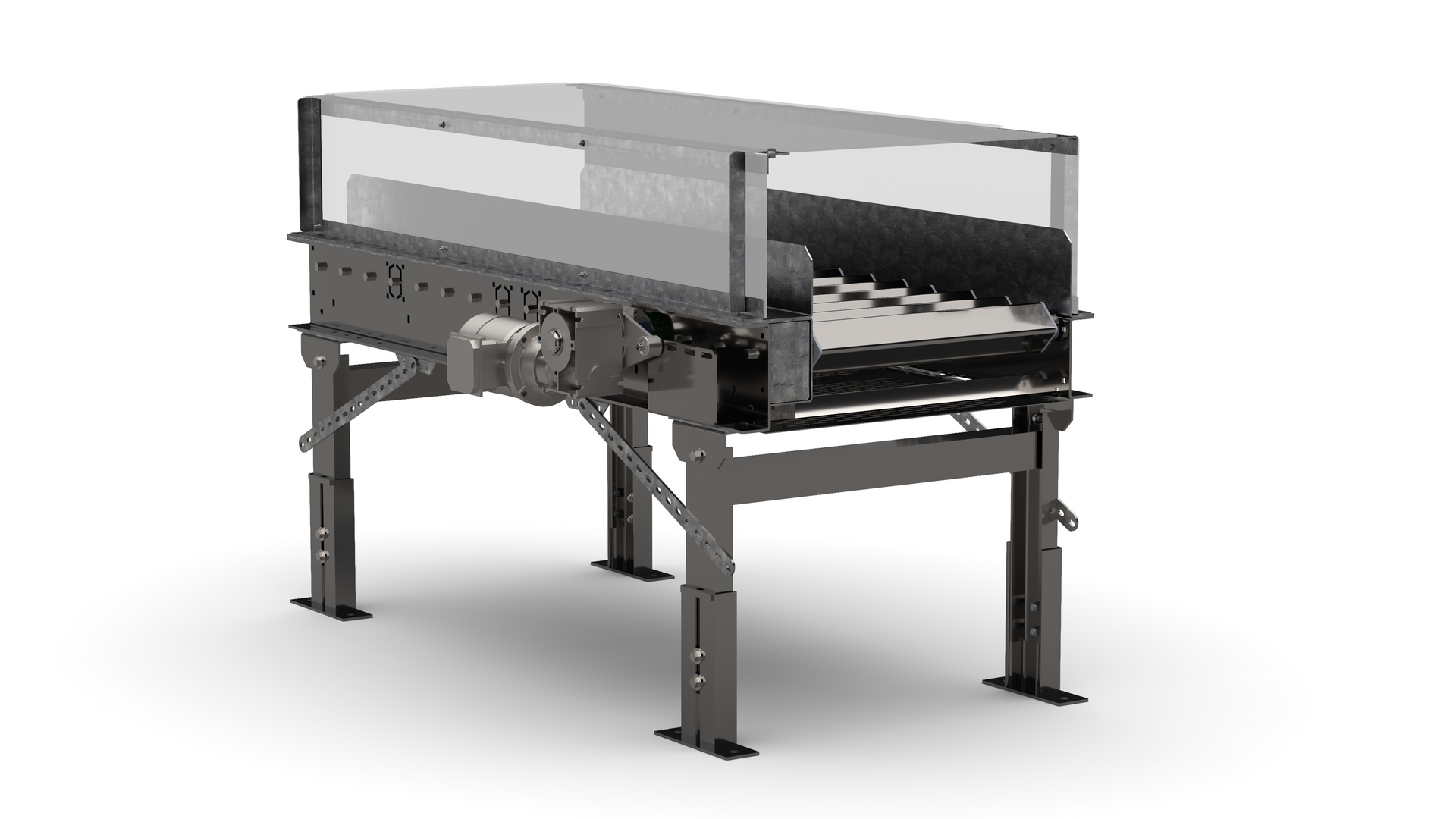

The Industrial Kinetics Square Roller Conveyor is a heavy-duty chain-driven live roller (CDLR) conveyor designed for conveying and settling filled bags by combining movement with vibration. This rugged conveyor utilizes a square roller configuration with chain drive and 4-1/2-inch roller centers for stable, positive-drive operation. The aggressive vibratory motion helps settle bag contents for improved palletizing uniformity. Built for industrial environments, it includes optional full-length guarding and e-stop cable to ensure safe, efficient operation

Technical Details

Controls

Load Capacities

Options

Non-Standard Features

Why Choose Us

The Industrial Kinetics Square Roller Conveyor offers dependable performance and superior bag-handling control. Engineered to CEMA standards, it provides positive-drive conveyance suitable for the toughest environments. The RC60 chain drive ensures long-lasting operation, while optional vibration assists in material settling, reducing air voids and improving pallet integrity. Built with precision-aligned rollers and robust steel framing, Industrial Kinetics conveyors deliver consistent performance and minimal maintenance.

System Integration

The Square Roller Conveyor integrates seamlessly with bag conditioning, flattening, and robotic palletizing systems. Its chain-driven design ensures synchronized motion with adjacent conveyors and automated handling equipment. The unit can be equipped with VFD control and PLC interfacing for coordinated line operation. Optional vibration assists enhance product settling without impacting throughput, making this conveyor a vital link in high-performance bag-handling systems.

What industries typically use these systems:

01

Feed & Grain – Moves and settles filled bags prior to palletizing.

02

Food & Ingredients – Settles powdered or granular products for consistent stacking.

03

Chemicals & Minerals – Handles dense or free-flowing products for uniform pallet formation.

04

Building Materials – Conveys and stabilizes cement, lime, and gypsum bags.

success stories

Manual Palletizing and Pallet Handling Conveyor System in Distribution Center

March 3, 2026
High speed manual palletizing system featuring a low profile dual deck Smart transfer car, automatic pallet dispenser, and zero pressure accumulation to reduce labor, improve ergonomics, lower maintenance costs, and streamline pallet handling operations.
Factory floor with a conveyor belt system and machinery, including a green cabinet, under bright lights.

Material Delivery and Dunnage Removal Conveyor system for Parallel Assembly Line, Overhead Material Delivery System

August 29, 2025
A vehicle manufacturer was looking for a new method to deliver materials for the assembly of vehicles to four parallel assembly lines. IK developed, engineered, and implemented an overhead pallet conveyor system that provided great benefits to the vehicle manufacturer.

Frequently Asked Questions

  • What makes this a “square roller” conveyor?

    The term refers to the use of square tubes over 2-1/2” diameter rollers (4-1/2 in centers) driven by RC60 chain drive that ensures consistent power transmission.

  • How does vibration assist bag settling?

    The vibration function gently agitates the bags as they move, allowing the contents to settle evenly, improving stacking and pallet stability.

  • Can the conveyor handle heavy or abrasive materials?

    Yes. The chain-driven live roller design provides high torque and durability suitable for heavy-duty or abrasive bagged materials.

  • What safety features are included?

    Standard guarding over chain drives, optional e-stop cable along the conveyor length.

  • Is variable speed available?

    Yes. A VFD package allows adjustable conveyor speed from 30–90 FPM to match production needs.

  • Can it be integrated with robotic palletizers?

    Yes. The conveyor’s positive-drive mechanism and precise motion control make it ideal for robotic or automated bag-handling lines.

  • What maintenance is required?

    Regular lubrication of chain and bearings, visual inspection of roller alignment, and tension checks ensure long-term performance.

  • Is a stainless-steel version available?

    Yes. Stainless-steel rollers, and frames are available for food-grade or corrosive applications.
