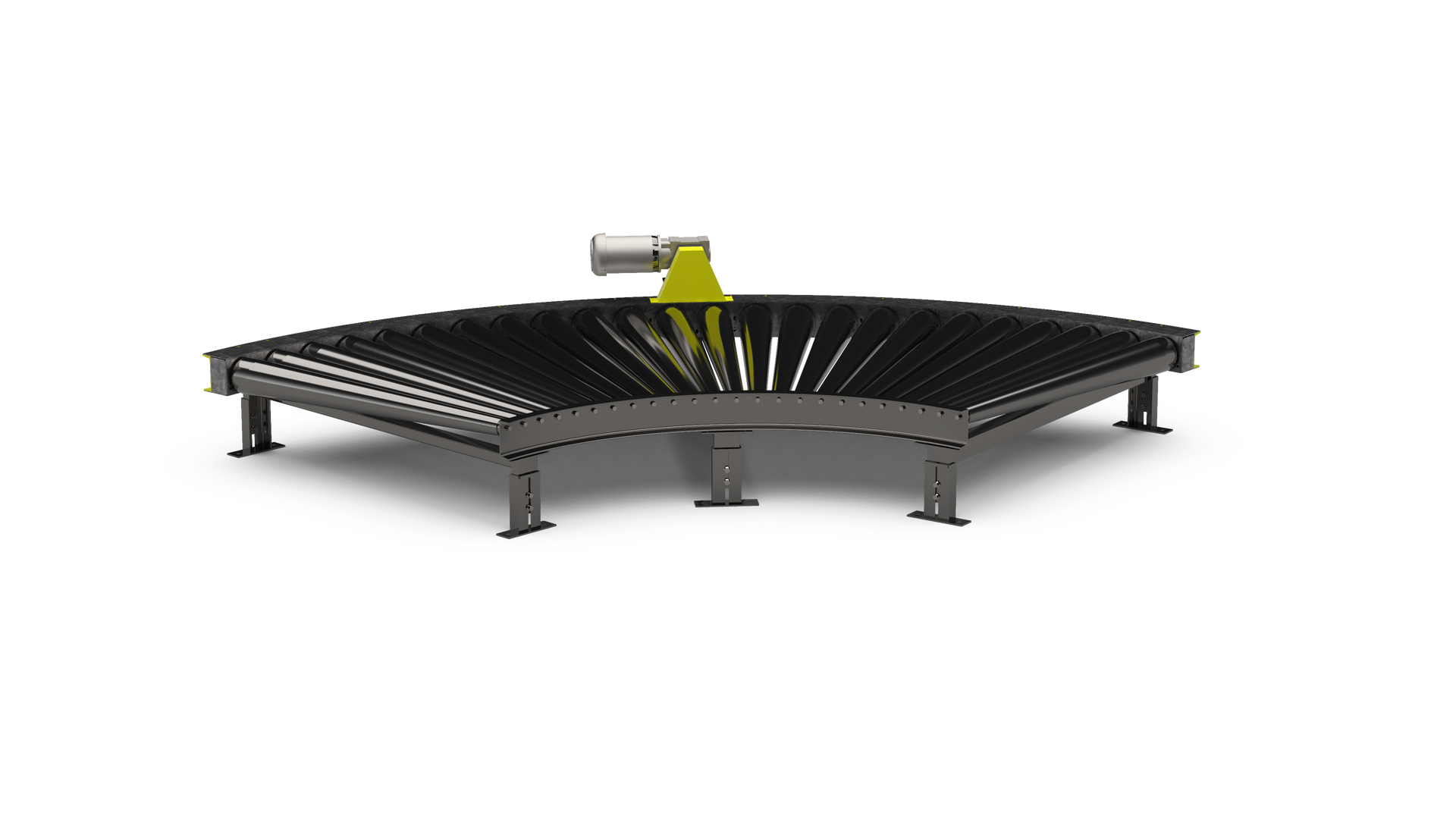

Chain Driven Live Roller Curve

Overview

Industrial Kinetics’ Chain Driven Live Roller (CDLR) Curve Conveyors are engineered to transport palletized or unit loads smoothly and positively around horizontal curves. Utilizing a roller-to-roller chain drive, these curves maintain consistent pallet orientation and control through 30°, 45°, 60°, and 90° directional changes. CDLR curves are designed for heavy-duty pallet handling where reliability, load control, and integration with straight CDLR conveyor sections are critical.

Specifications

Controls

Load Capacities

Options

Non-standard Features

Why Choose Us

Industrial Kinetics CDLR curve conveyors are designed using proven CEMA application guidelines and engineered to match the performance and durability of straight CDLR conveyor sections. The positive chain-driven design ensures pallet control through curves without slippage, skewing, or loss of orientation. Heavy-duty construction and flexible configuration options allow these curves to perform reliably in demanding pallet handling systems.

success stories

Manual Palletizing and Pallet Handling Conveyor System in Distribution Center

March 3, 2026
High speed manual palletizing system featuring a low profile dual deck Smart transfer car, automatic pallet dispenser, and zero pressure accumulation to reduce labor, improve ergonomics, lower maintenance costs, and streamline pallet handling operations.
Factory floor with a conveyor belt system and machinery, including a green cabinet, under bright lights.

Material Delivery and Dunnage Removal Conveyor system for Parallel Assembly Line, Overhead Material Delivery System

August 29, 2025
A vehicle manufacturer was looking for a new method to deliver materials for the assembly of vehicles to four parallel assembly lines. IK developed, engineered, and implemented an overhead pallet conveyor system that provided great benefits to the vehicle manufacturer.

System Integration

CDLR curve conveyors are designed to integrate seamlessly with straight CDLR conveyors, pallet stops, transfers, scales, and automated interfaces. These curves are commonly used in systems that include palletizers, depalletizers, ASRS, AGVs, and robotic cells, maintaining consistent pallet speed and control throughout directional changes.

What industries typically use these systems:

01

Manufacturing: Routing pallets between process areas while maintaining controlled flow.

02

Warehousing & Distribution: Directional changes in pallet conveyor lines feeding ASRS or shipping lanes.

03

Automotive & Heavy Industry: Transporting heavy pallets and racks through curved conveyor paths.

04

Consumer Goods & Packaging: Pallet movement between palletizing, stretch wrapping, and staging zones.

Frequently Asked Questions

  • When should tapered rollers be used instead of straight rollers?

    Tapered rollers help maintain pallet orientation through the curve and are commonly used for standard pallets and mixed load conditions.

  • Can CDLR curves handle heavy pallets?

    Yes. CDLR curves are designed for heavy-duty pallet handling, with the 2607 series recommended for higher loads.

  • Are CDLR curves reversible?

    Yes. With appropriate drive configuration, CDLR curves can operate in either direction.

  • Do CDLR curves match straight conveyor speeds?

    Yes. Curves are typically designed to match the speed and elevation of adjoining CDLR straight sections.

  • Can these curves integrate with ASRS or automated systems?

    Yes. CDLR curves are commonly used in ASRS, palletizing, and robotic conveyor systems.
